Ball Pendulum System (BPS)
Shaking Table Tests of a Structure with BPS Base Isolators
Shaking Table Tests of a Structure with BPS Base Isolators

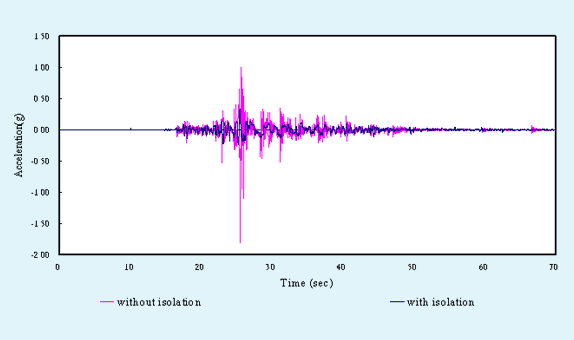

Comparison of the Roof Acceleration of the Bare Structure and the BPS Base Isolated Structure during El Centro Earthquake (PGA=X0.479g+Y0.277g+Z0.319g)

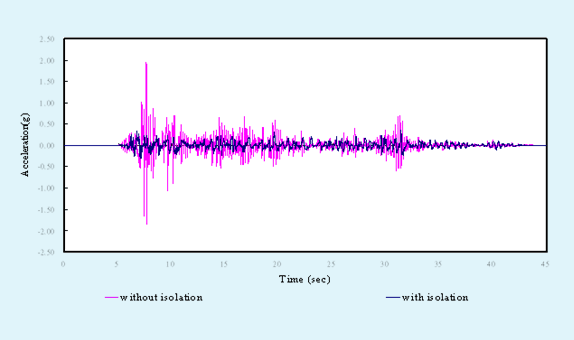

Comparison of the Roof Acceleration of the Bare Structure and the BPS Base Isolated Structure during Kobe Earthquake (PGA=X0.544g+Y0.359g+Z0.227g)

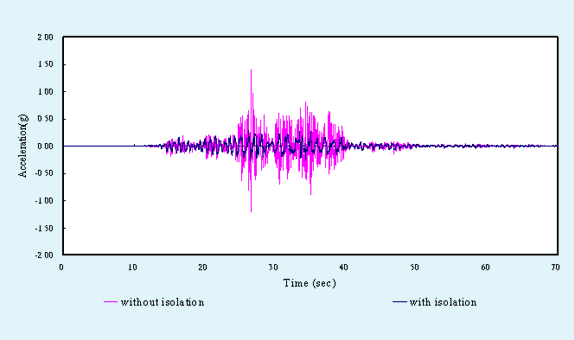

Comparison of the Roof Acceleration of the Bare Structure and the BPS Base Isolated Structure during 1999 Chi-Chi Earthquake (TCU084, PGA=X0.513g+Y0.170g+Z0.151g)

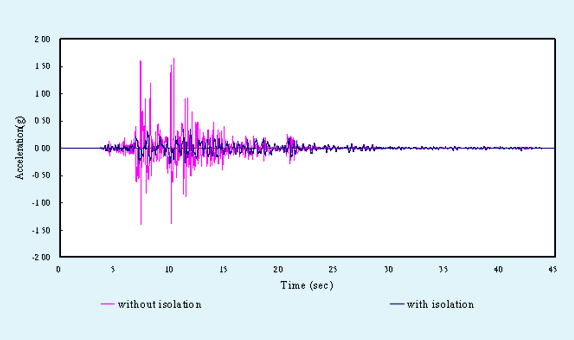

Comparison of the Roof Acceleration of the Bare Structure and the BPS Base Isolated Structure during 1999 Chi-Chi Earthquake (TCU068, PGA=X0.472g)
